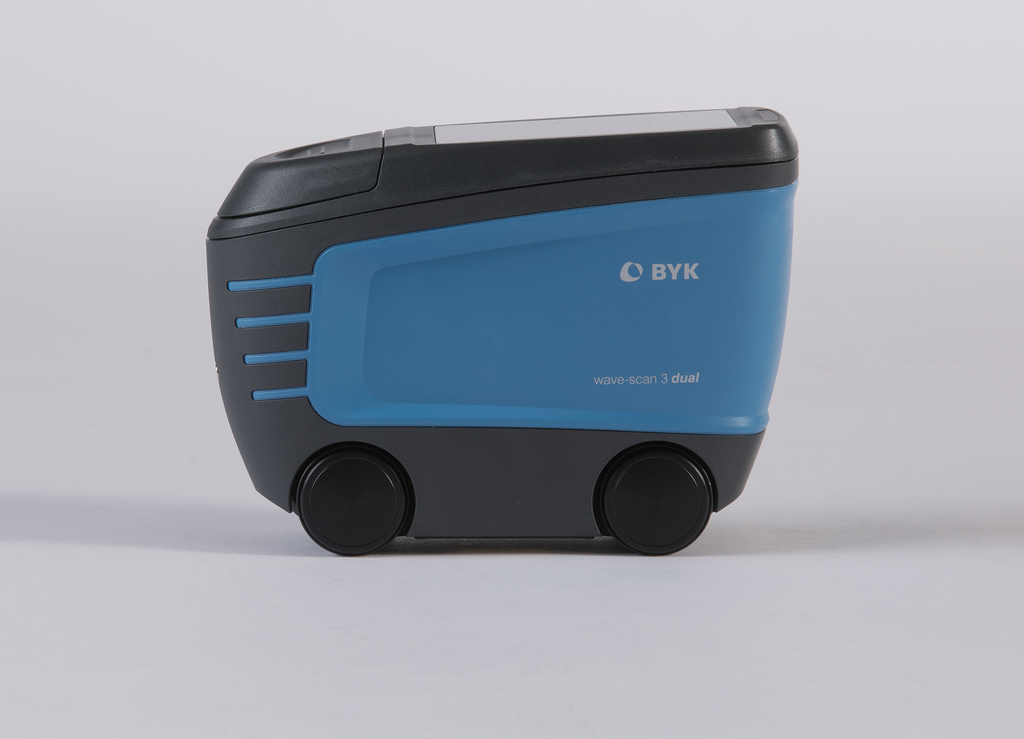

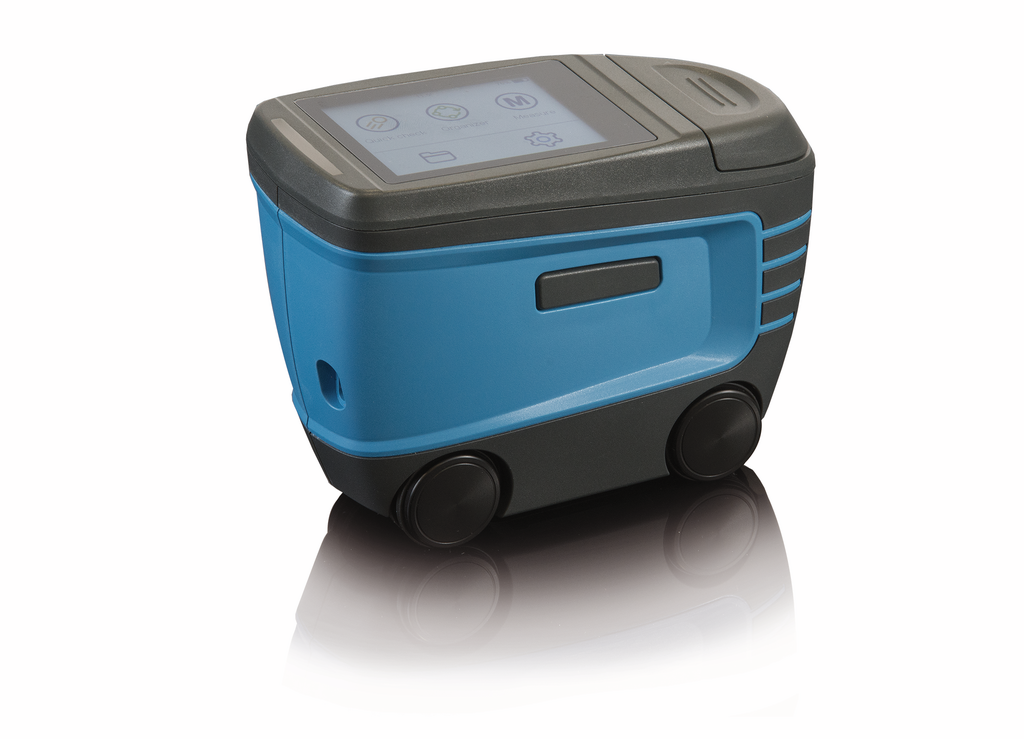

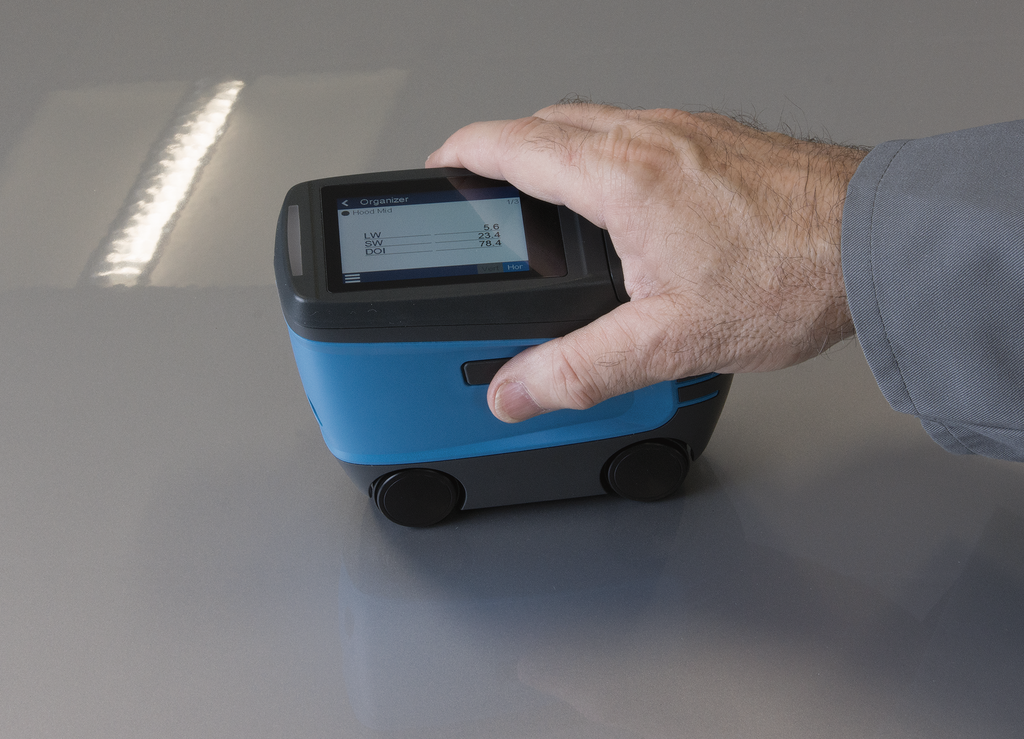

Orange peel meter for medium to high gloss finishes
wave-scan 3 dual
The Objective Eye for a Brilliant Finish
The next wave-scan generation - Appearance control is no longer limited to final topcoat inspection.
- Objective orange peel and DOI measurement
- Expanded measurement range for high to semi gloss surfaces
- For dullness up to 65 units
Select your Model
Enter a value between 1 and 100000000 in increments of 1.
excl. taxes & shipping cost
The next wave-scan generation - Appearance control is no longer limited to final topcoat inspection.
The next wave-scan generation

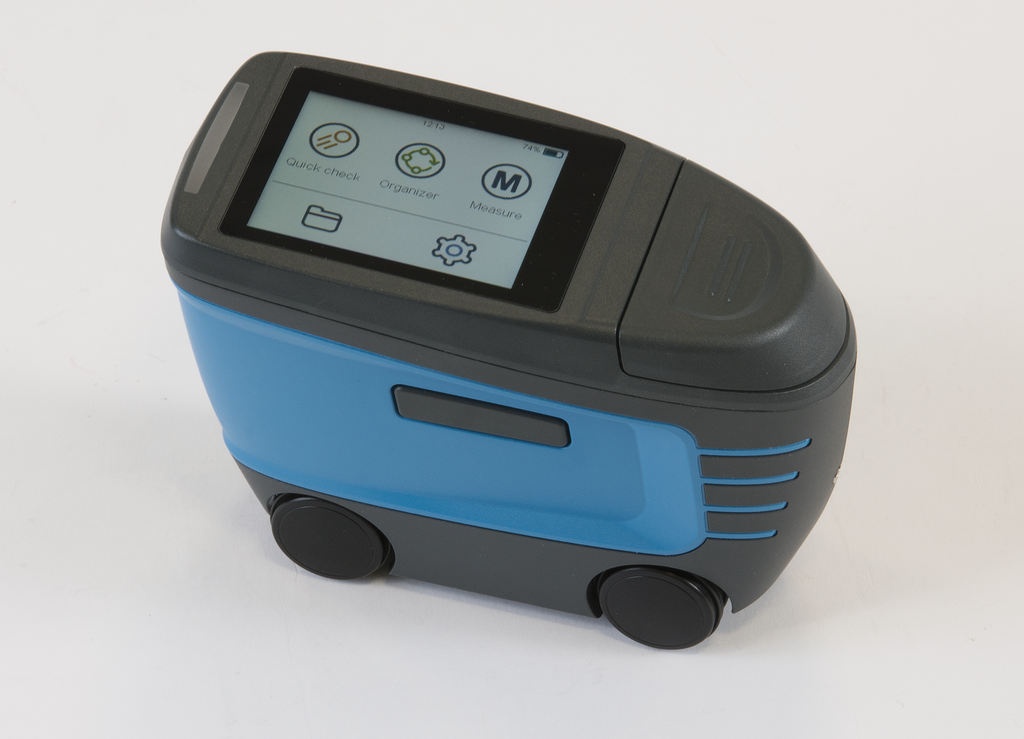

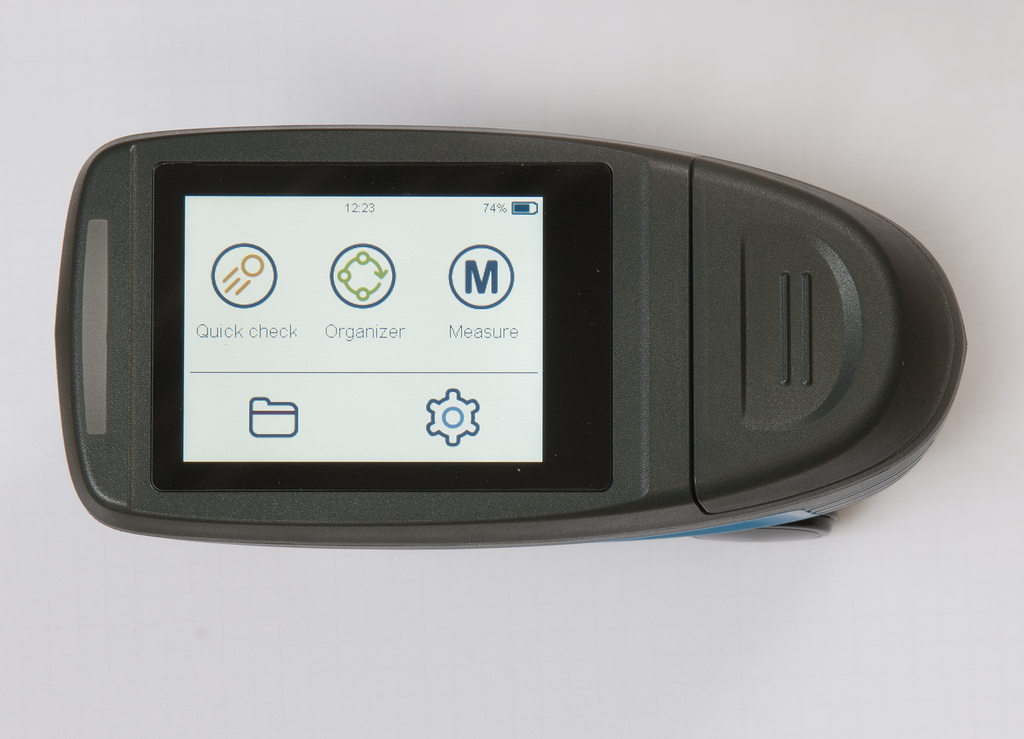

- Extra-large color touch display
- Capacitive display with state-of-the-art haptic touch
- Quick and easy operation with intuitive icon based menu
- Scales and scan lengths can be selected from menu
- Full statistics and data saving
- For flat and curved surfaces (radius larger than 50 cm)
- Classical LW, SW and customer specific scales
- Structure spectrum to analyze appearance changes for optimization
- Dullness and DOI measurement independent of the paint system

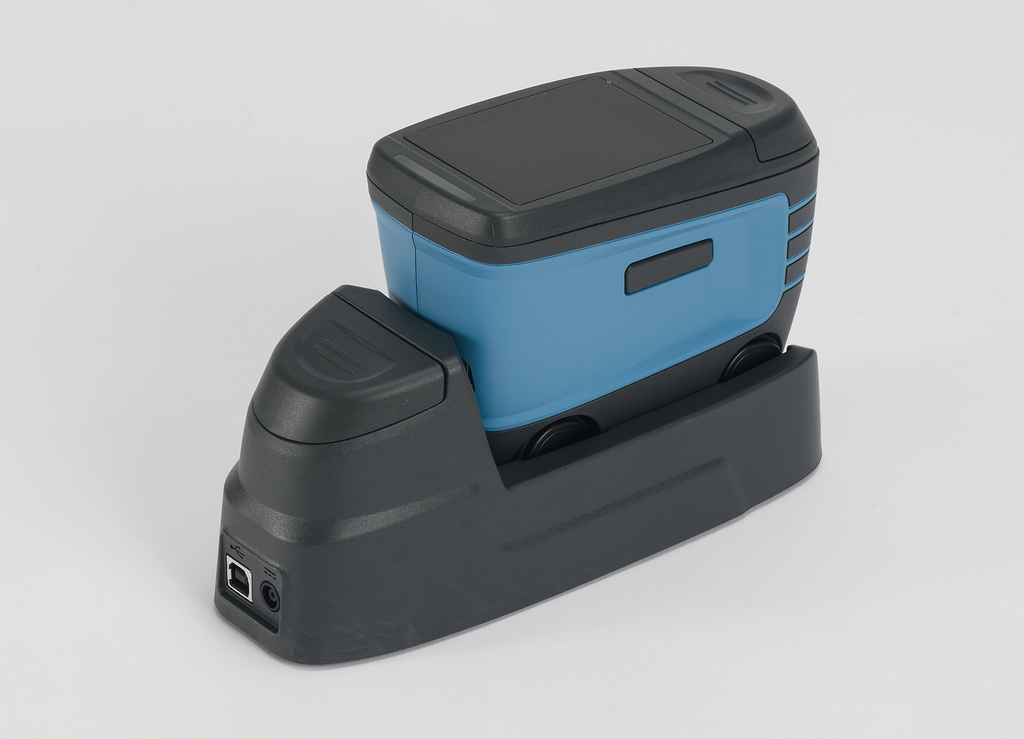

- Docking station for data transfer to the PC and recharging the batteries of the Orange Peel meter
- smart-chart software for professional data analysis and documentation
consentmanager.net| Technical Specifications | |
|---|---|
| Application | |
| Structure Spectrum | du: < 0.1 mm Wa: 0.1 to 0.3 mm Wb: 0.3 to 1 mm Wc: 1 to 3 mm Wd: 3 to 10 mm We: 10 to 30 mm |
| Repeatability (Std. Dev.) | |
| Reproducibility (Std.Dev.) | |
| Object Curvature | |
| Scan Length | |
| Resolution | |
| Min. Sample Size | |
| Light Source | |
| Laser Energy | |
| General | |
| Memory | |
| Interface | |
| Display | |
| Languages | |
| Power supply | |
| Weight | |
| Weight | |
| Operating temperature | |
| Storing temperature | |
| Operating temperature | |
| Storing temperature | |
| Relative humidity | |
| Dimensions: L x W x H | |
| Dimensions: L x W x H | |
Instrument
Checking tile (7404)
Docking station with USB cable (7401)

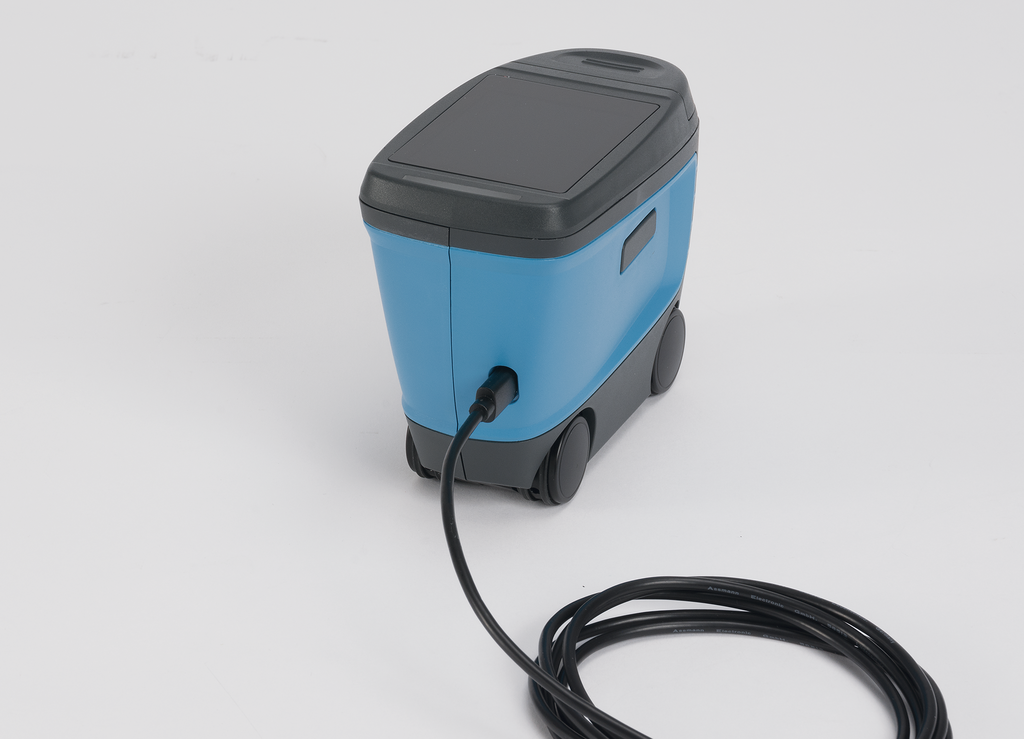

USB cable for direct data transfer
