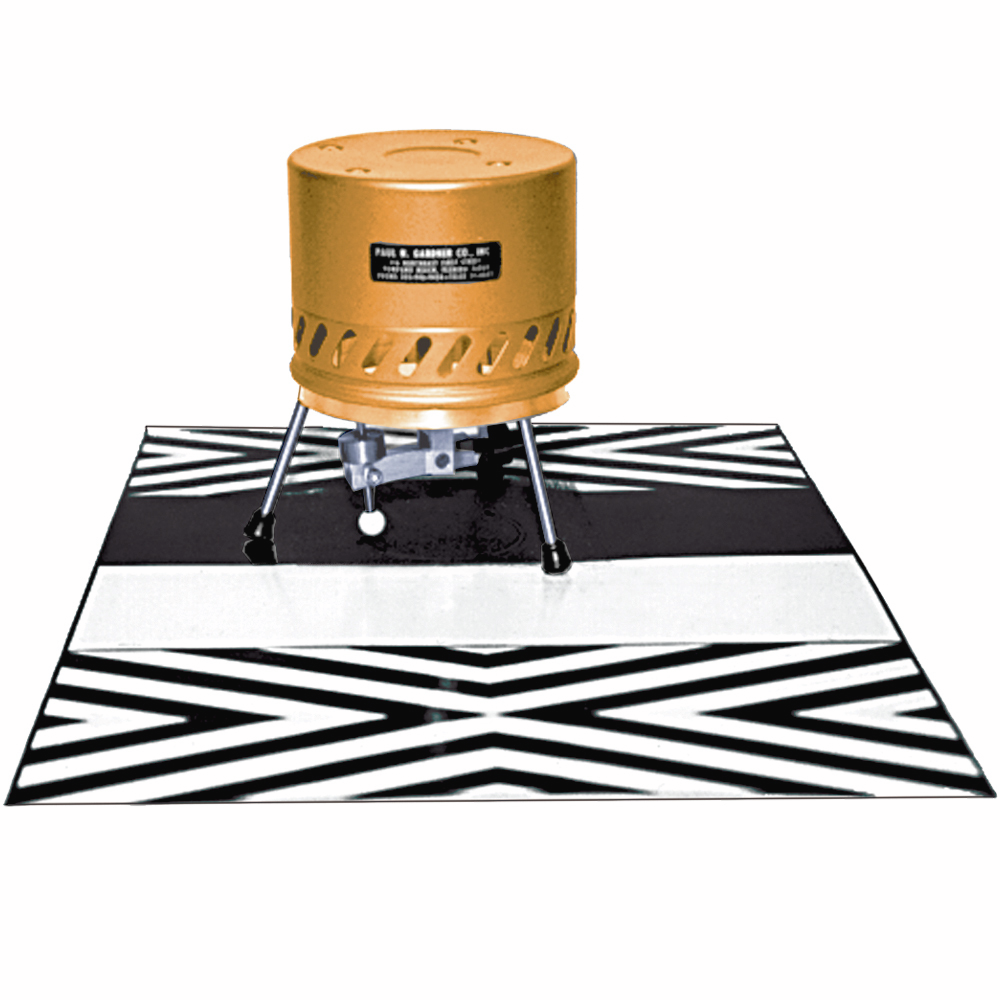

An armature extends vertically from the motor shaft and is attached to a horizontal counter balanced arm. At one end of the arm is a teflon ball stylus that extends downward to the surface. At the opposite end of the arm is a counter-weight that can be adjusted to balance the arm. A 12 gram weight is supplied to be mounted on top of the ball stylus shaft. The weight load on the ball can be adjusted by the operator so that results will closely coincide with the finger touch method of determining drying time. A clear plastic template is furnished. The template is placed on the panel after test and overlaid on the circle scribed by the ball into the coating. The template indicates the hours of operation of the recorder at any given point. Transparent 24 Hour Time Template Provided with Instrument.
|Two Ranges:||1 Hour or 24 Hours|
|Dimensions of Case:||Inches: 3-5/16" dia. x 3-1/4" high / Centimeters: 10 dia. x 8.2 high|
|Total Weight:||18 ounces, 504 grams|
|Shipping Weight:||3 lbs. (1.36 Kg.)|
|Finish (Case):||Gold Anodized Aluminum|
|Legs & Stylus Mechanism Parts:||Stainless Steel & Aluminum|
|Standards:||Conforms to ASTM D5895|
Attach Arm and Ball assembly to the winding post using the supplied Allen wrench
Wind the clock mechanism, DO NOT OVERWIND THE MAINSPRING SEE BELOW FOR WINDING INSTRUCTIONS
Place freshly coated panel in oven
Center recorder over it
Lower stylus onto wet panel and allow rotation to begin
How to Rewind the 618 1-Hour Clock Mechanism - Rewind the clock mechanism using the Arm and Ball assembly when its attached to the winding post. Fully wind the clock spring with approximately 10 turns (180 degree rotation each turn) for the 1-hour clock. DO NOT OVERWIND THE MAINSPRING.
How to Rewind the 618 24-Hour Clock Mechanism - Rewind the clock mechanism using the Arm and Ball assembly when its attached to the winding post. Fully wind the clock spring with approximately 3 to 5 turns (180 degree rotation each turn) for the 24-hour clock. DO NOT OVERWIND THE MAINSPRING.
