Features
Originally designed to simulate the action of a human finger and forearm, the Crockmeter uses a standard pressure and rubbing motion to provide reliable and reproducible test results. Specimens are positioned on the base of the Crockmeter and held in place with the sample holder.

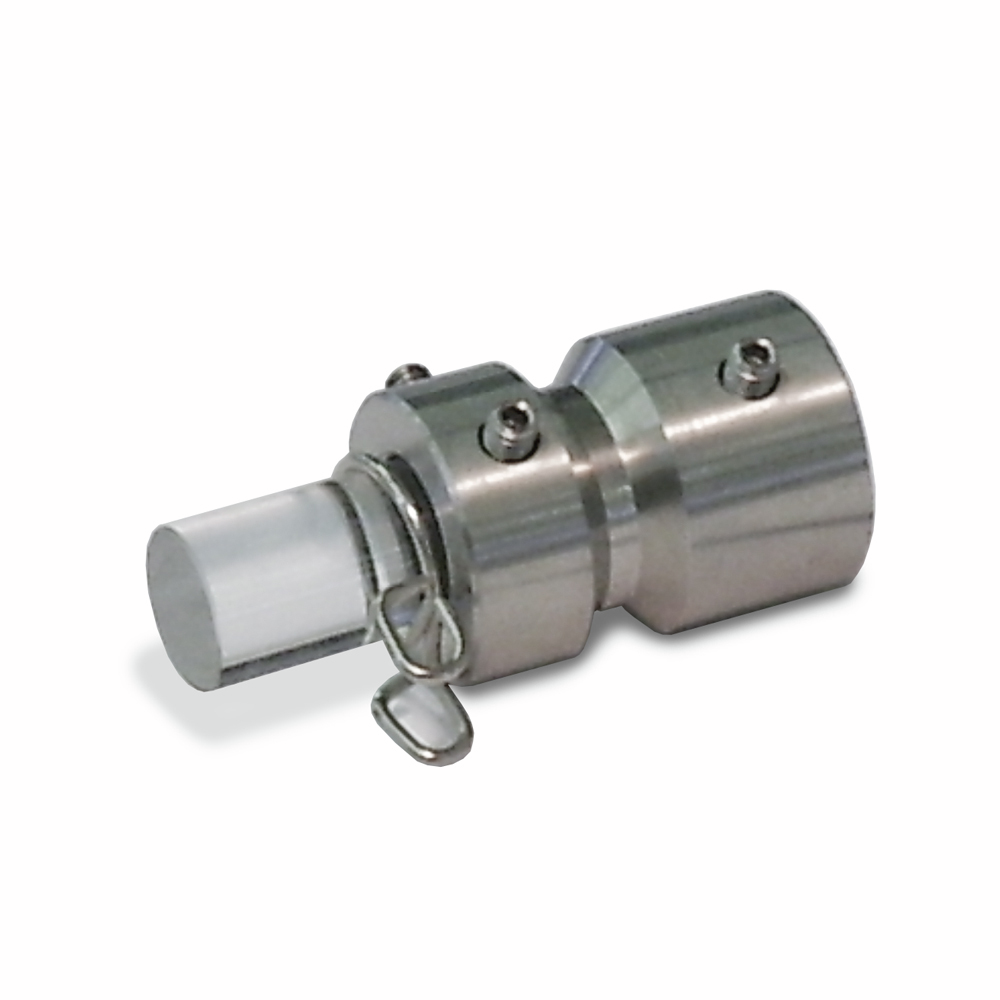

To prevent the specimen from shifting during testing, a sandpaper pad is provided to place under the specimen. A hand crank moves a reciprocating arm a distance of approximately 100mm. The rubbing action is provided by a 16mm diameter acrylic "finger" which moves back and forth in a straight line with each complete turn of the crank. The reciprocating load arm is weighted to provide a constant 9N load on the sample at all times and a mechanical counter keeps track of completed cycles.
